ovEgo™ Series
E-Mob-CHG25
ovEgo™ Series – Electric Charging Solutions (Chargers & Charging Racks)

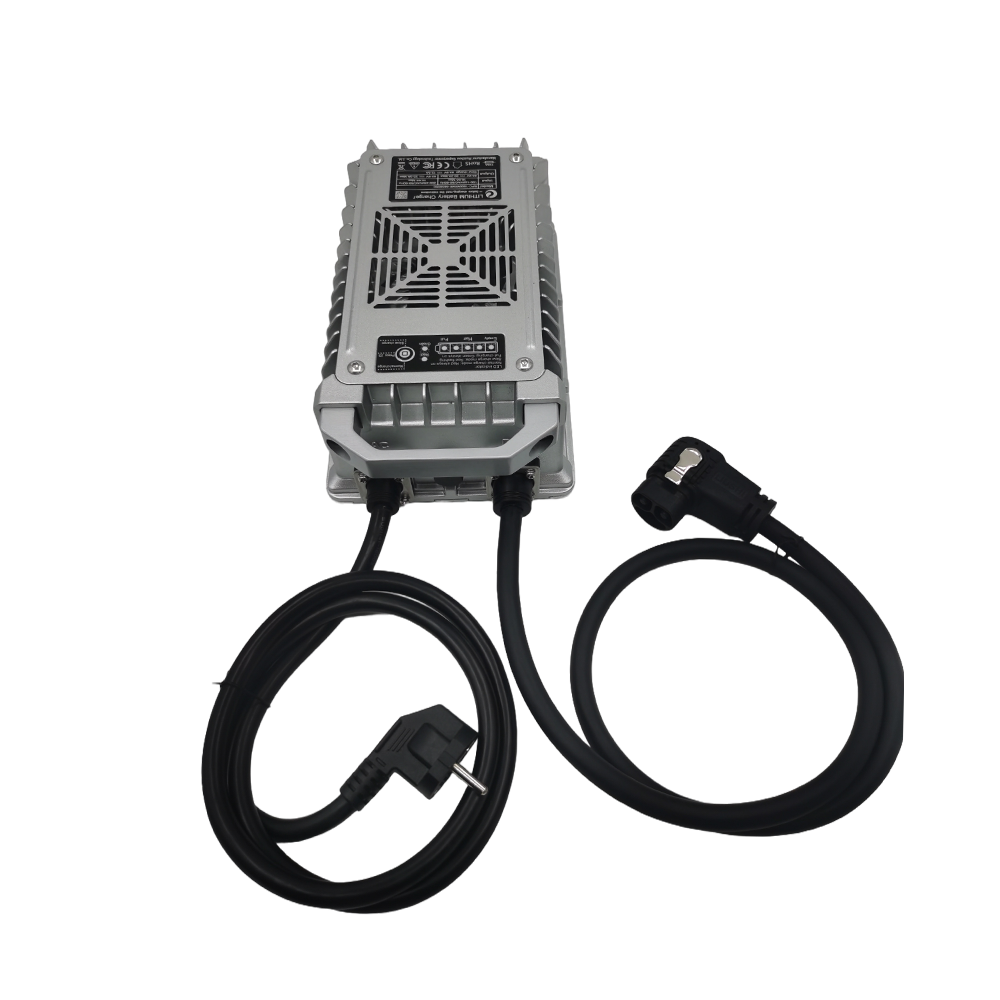

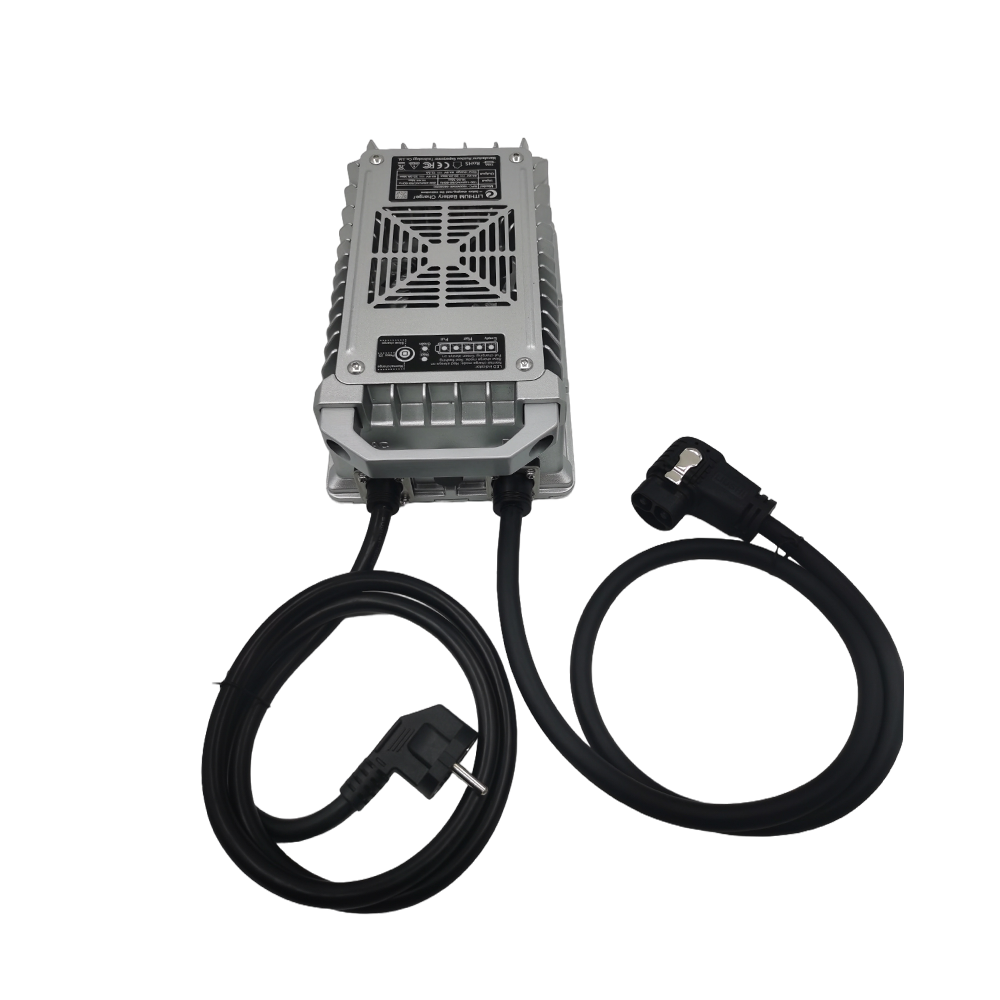

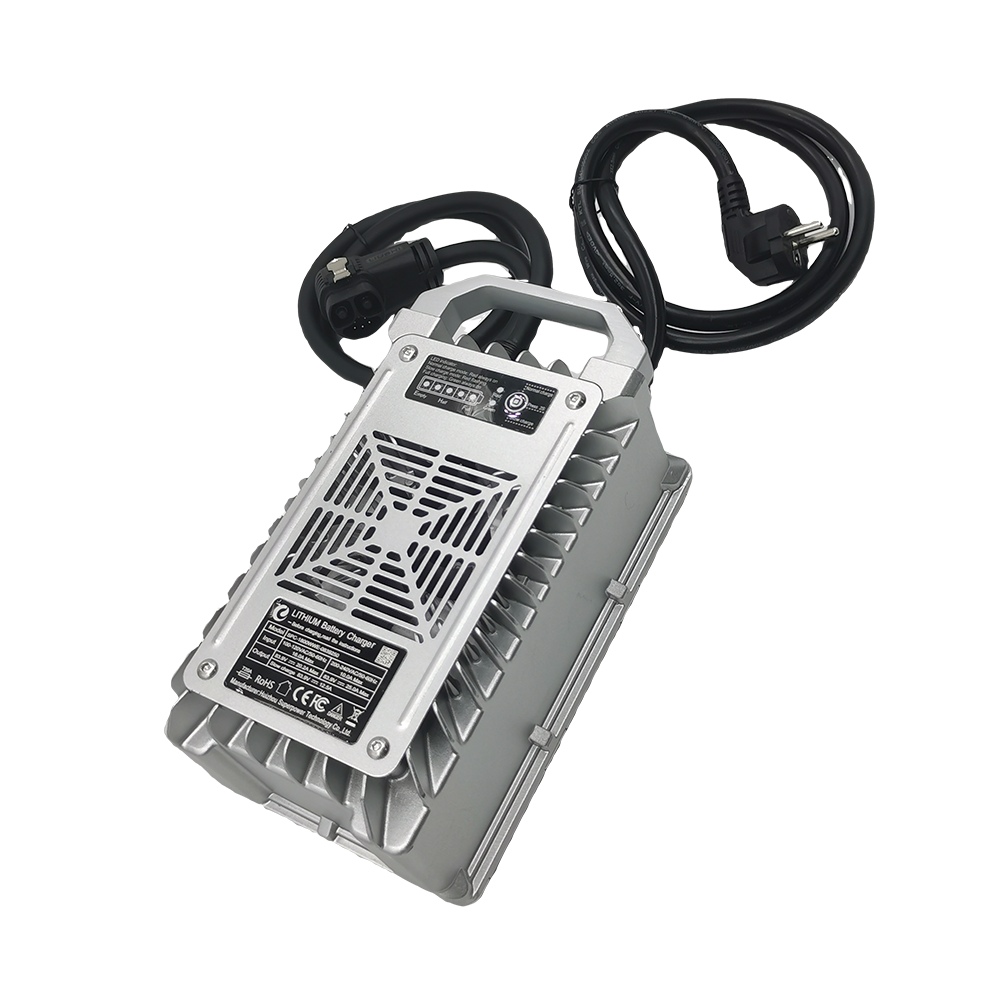

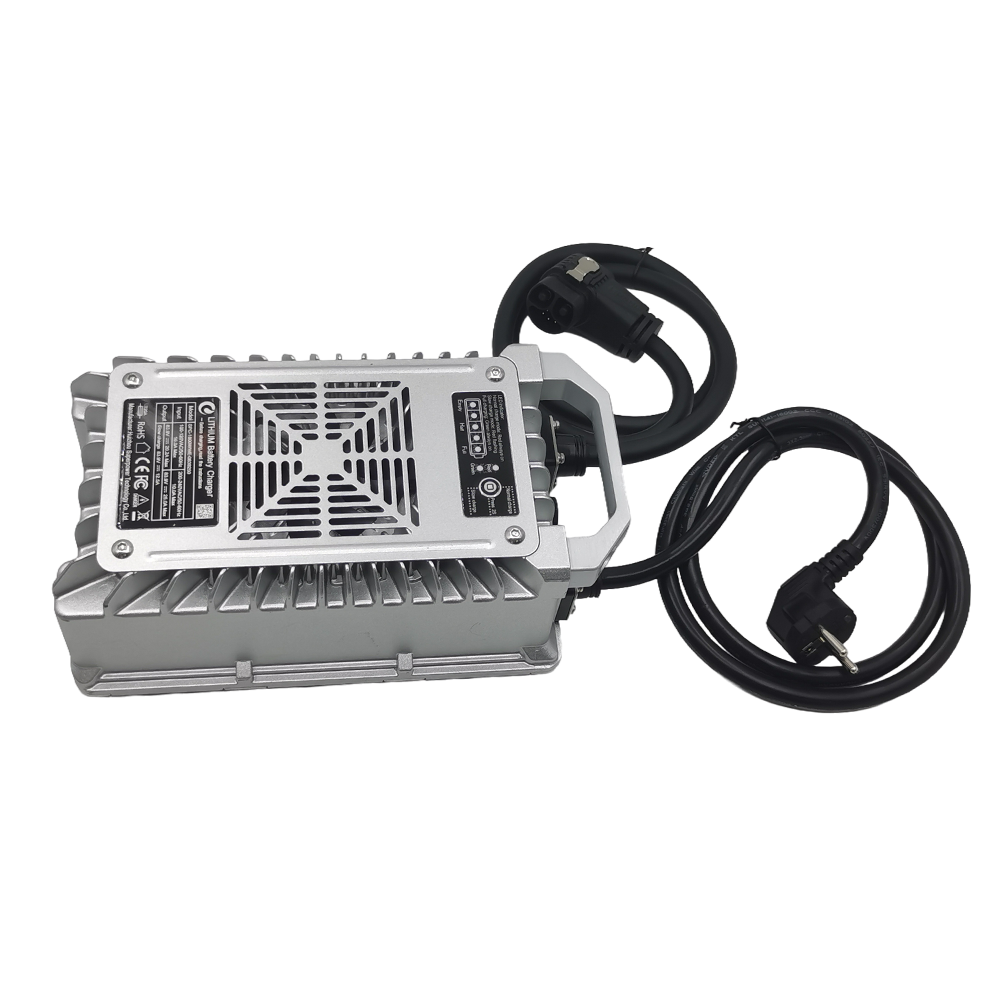

The E-Mob-CHG25 is a variable direct current battery charger capable of providing 2000W.
It features an aluminum housing design and boasts an impressive efficiency of up to 90%.
Equipped with a built-in MCU, it can accommodate the charging requirements of different battery types and special charging functions for various customers. Its standby power consumption is less than 5W when idle.
The E-Mob-CHG25 is designed with a fan-forced cooling system that can operate efficiently even in high-temperature environments of up to 40 degrees Celsius.
This design ensures that internal components maintain a lower operating temperature, thus guaranteeing an extended lifespan.
In summary, the electric motorcycle charger is a reliable and efficient device, delivering fast and secure charging, user-friendly operation, and compatibility with different power sources to meet the charging needs of electric motorcycle enthusiasts.
Available to registered users after login/registration is enabled.
Product Properties
| Property | Value | Unit |
|---|---|---|
| Output Voltage | 84 | V_DC |
| Output Current | 25 | - |
| Charger Power | 2000 | - |
| Input Voltage | 90~264 | - |
| Input Frequency | 47-63 | - |
| Efficiency | ≥90% | - |
| Operating Temperature Range | -20℃~+40 | - |
| Humidity Range | 5%～90% | Generic |
| Slow Charge | Red LED Flickerin | Description |
| Normal Charge | Red LED constant ON | Description |
| Fully charged | Green LED constant ON | Description |
| Ingress Protection Grade | 65 (Waterproof metal shell type, except the connectors and Fan） | - |
| Shipping Carton Qty | 4 | - |
| Shipping Carton Size | 375x325x350 | MM |
| Shipping Carton Weight | 19 | Kg |
