ovEgo™ Series
E-Mob-CHG12
ovEgo™ Series – Electric Charging Solutions (Chargers & Charging Racks)
Compact and efficient, the E-Mob-CHG12 is a 880W Litihium battery AC charger designed for seamless compatibility with LFP batteries. Weighing just 3 kg, it's highly portable and operates on standard household power outlets, making it ideal for both personal and commercial use. Equipped with multiple protective features and an efficiency above 91% at 230V AC input, it ensures rapid and reliable charging for your electric mobility needs.
- 880W charging capacity for fast battery replenishment
- Lightweight design at 3 kg for easy portability
- Operates on standard household outlets for user convenience
- Efficiency over 91% ensures energy savings and quick charging
Product Model: E-Mob-CHG12 | Check full specifications on datasheet.
Available to registered users after login/registration is enabled.
Product Properties
| Property | Value | Unit |
|---|---|---|
| Output Voltage | 82.8 | V_DC |
| Maximum Output Current | 12 | A |
| Rated Output Power | 864 | W |
| Operating Temperature Range | -20°C ~ +45 | - |
| Humidity Range | 10%~90% (Non-condensation) | Generic |
| Efficiency | ≥88% | - |
| Slow Charge | Red LED Flickerin | Description |
| Normal Charge | Red LED Constant ON | Description |
| Fully Chargerd | Green LED Constant ON | Description |
| Ingress Protection Grade | IP67 | - |

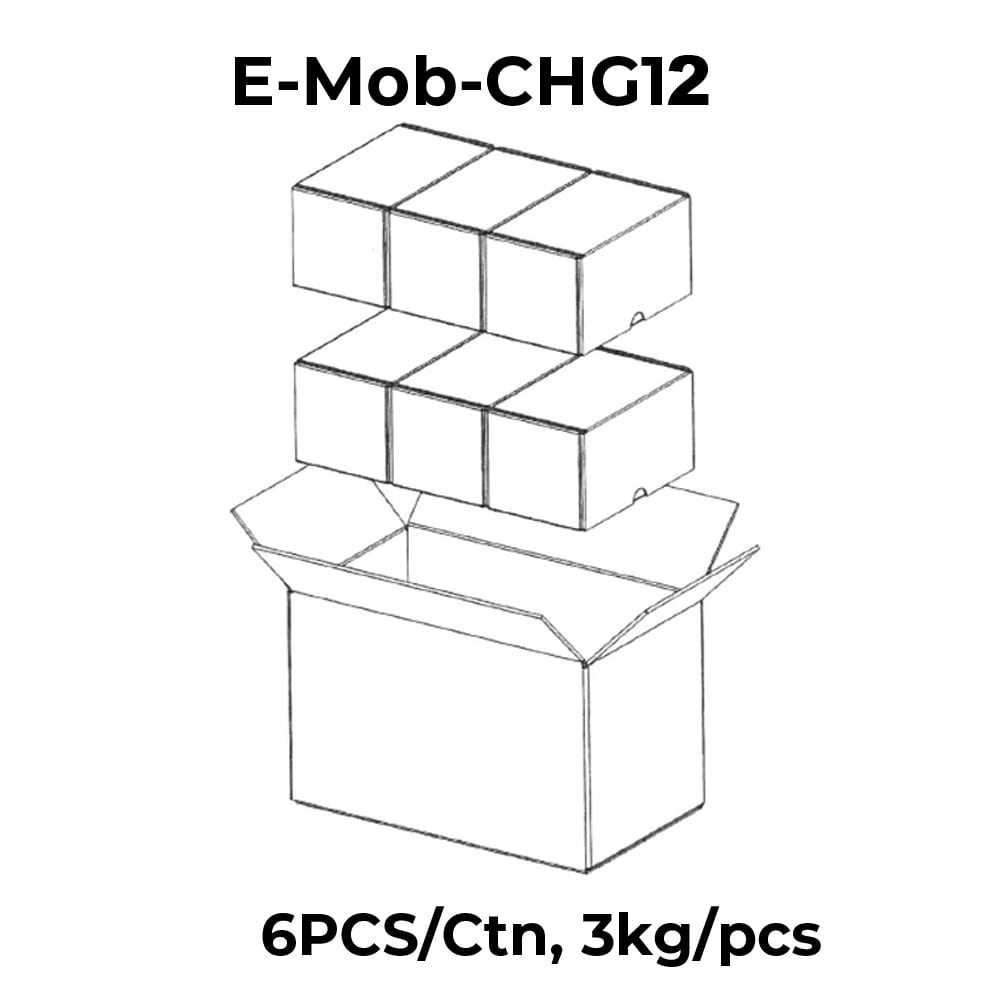

| Shipping Carton Qty | 6 | - |
| Shipping Carton Size | 505x290x315 | MM |
| Shipping Carton Weight | 19 | Kg |
