UBP™ Series

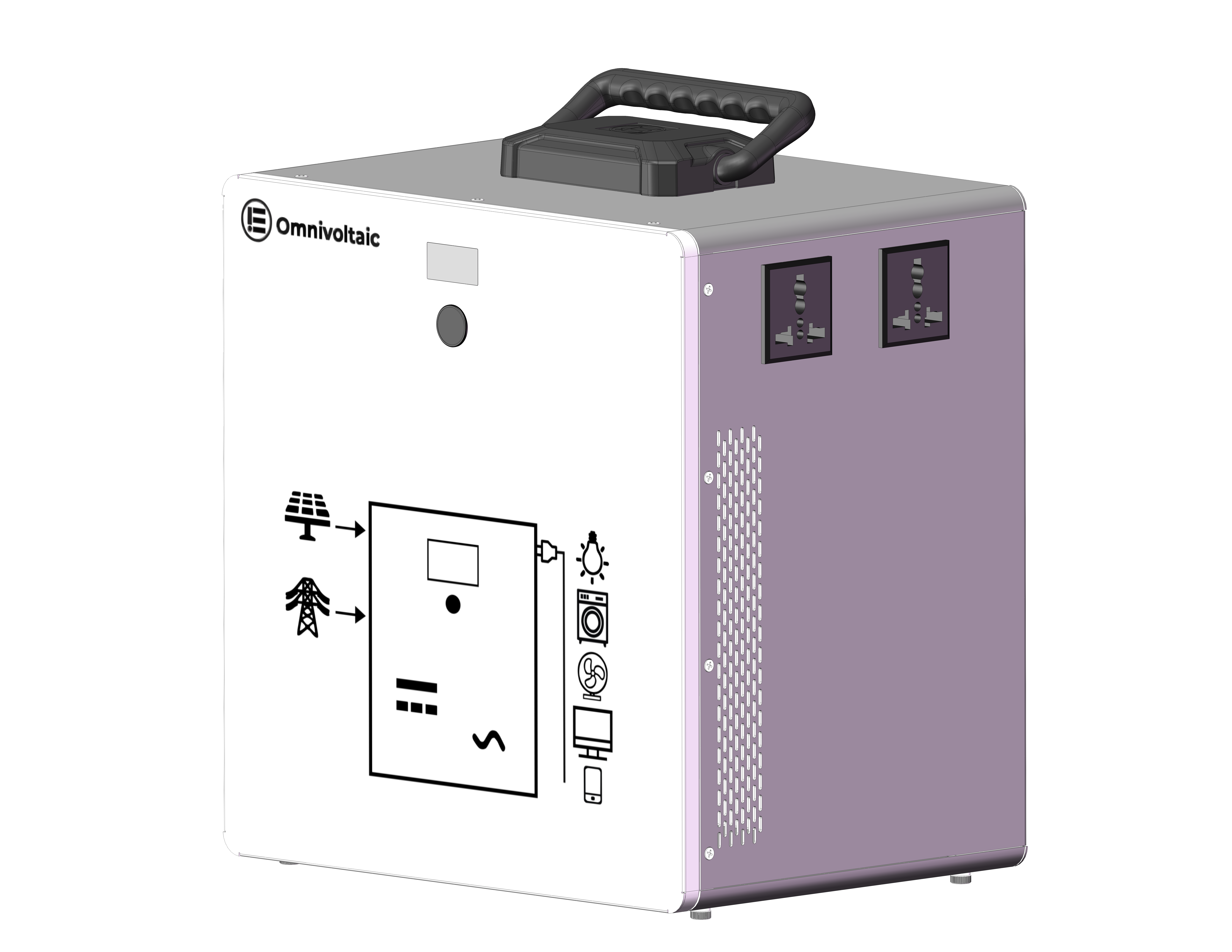

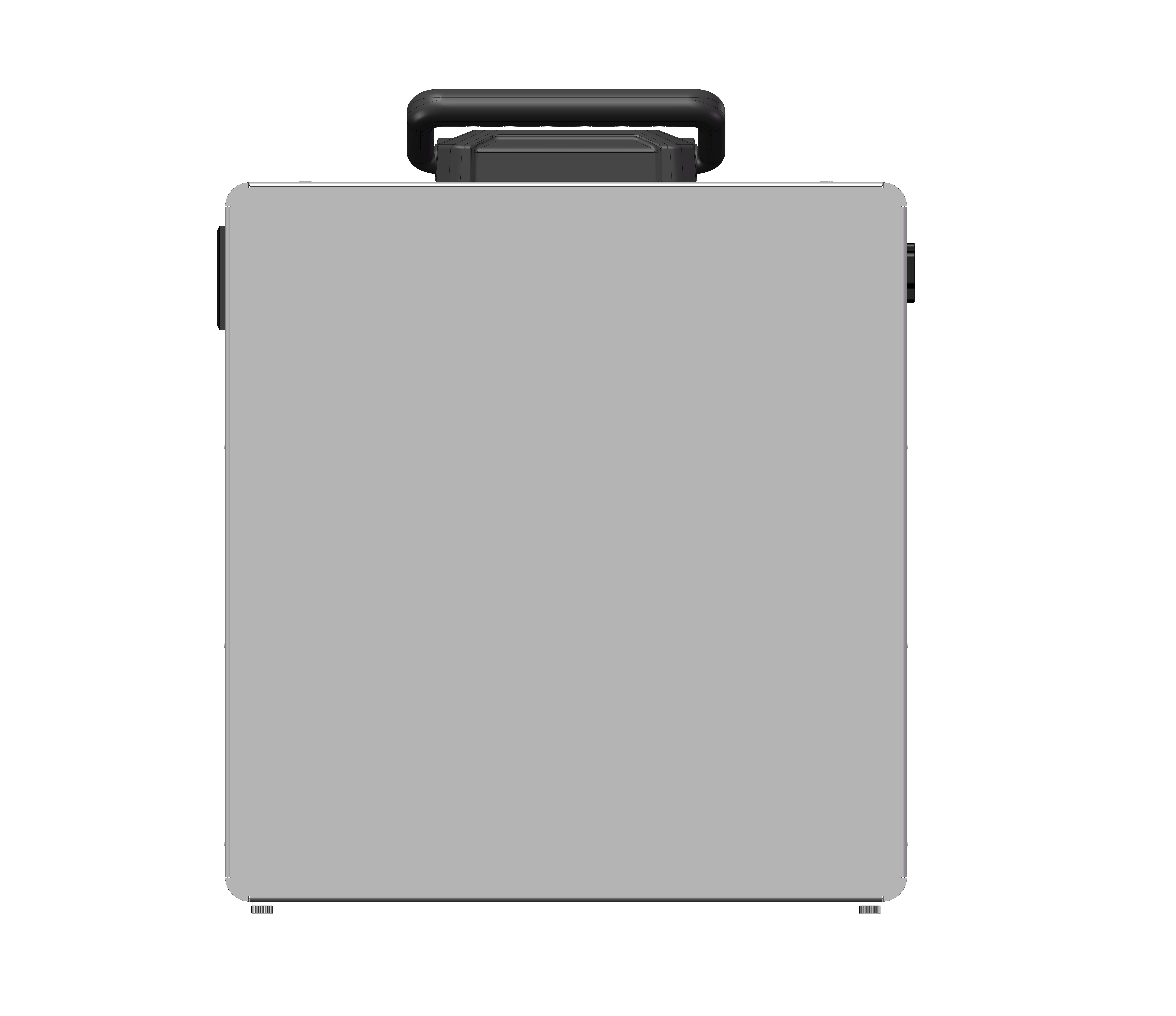

OVES UBP2K PRO

UBP™ Series – Entry Level Cost-Effective Power System

The Unicell Boost Pulsar UBP1K-BLE is a robust energy storage solution, providing 2000Wh capacity and a 1000W output, suitable for higher power demands. At 20 kg, it incorporates protections against overcharge, over-discharge, overcurrent, and short circuits. With a 90% AC efficiency and pure sine wave output, it delivers reliable power for home emergency backups, outdoor adventures, and mobile workstations. Whether for off-grid use, camping, or disaster relief, this system offers *cost-effective, long-lasting power.

Powerful Boost Technology Used

Upgrade Metal Case Version

Kernel Parameter

  • Capacity: 2000Wh
  • Rated Output Power: 1000W
  • Mppt Input Vltage: 11~55V/ 550W Max.
  • Fast Charging: AC around 3.6hours,AC around 2hours

Advantages:

  • AC Charge/Discharge Power:1000W for the latest version.

  • PV Charging Power: 5500W for the latest version , with universal compatibility for commercial PV panels.

  • Low Noise Level: ≤50dB for the latest version .

  • Premium Metal Housing: Corrosion-resistant, anti-aging, and sleek high-end design.

  • Rich Interfaces: Equipped with a 5V USB output, compatible with our proprietary display screen.

  • MC4 PV Connector: Plug-and-play design, universally compatible with all standard commercial solar panels.

  • Dual Installation Modes: Portable or wall-mountable, suitable for various application scenarios.

  • Removable Dust Filter: Washable design extends service life.

  • Easy After-Sales Maintenance: Optimized structure for convenient servicing.

  • Super Cost-effective and affordable

  • Powerful AC / Solar Charging

  • Small In Size and Light Weight

  • Emergency Backup Power

  • Remote Monitoring and PAYG

Reliable in performance;

  • Attractive in appearance;

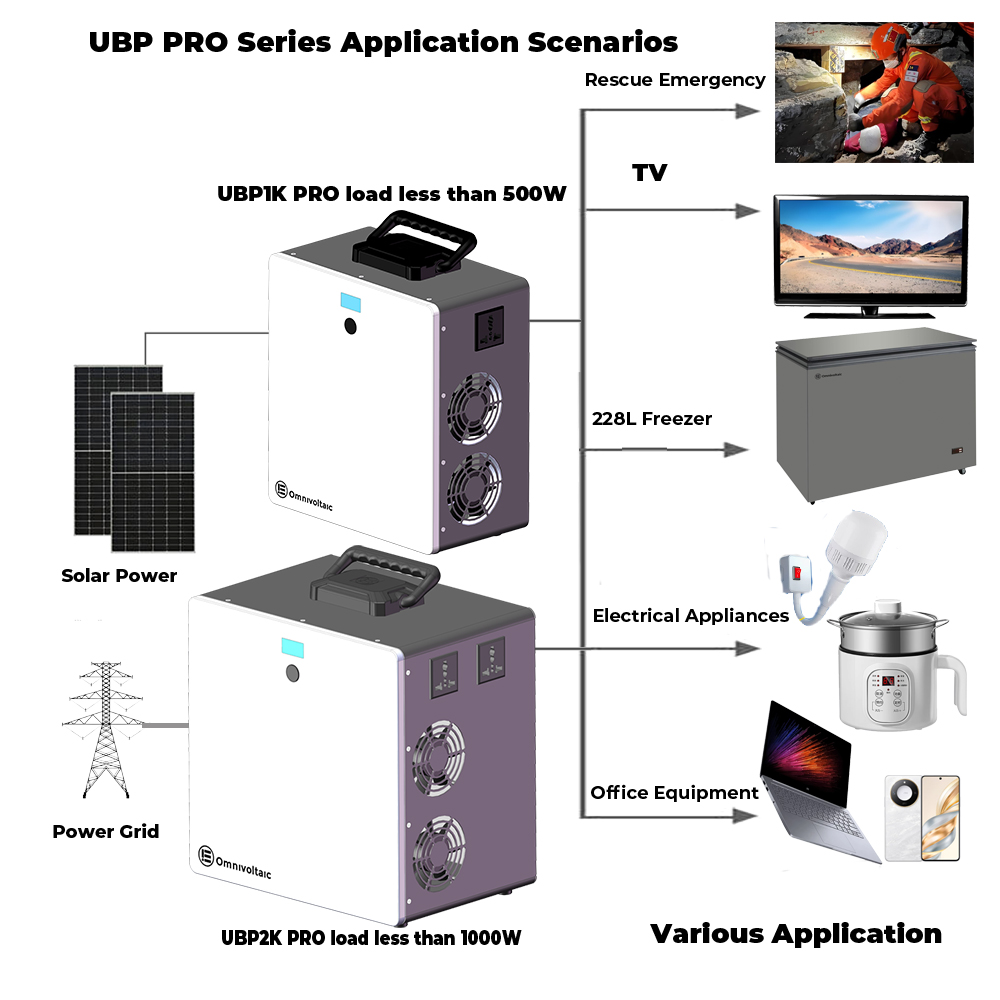

  • Multiple work modes, suitable for many scenarios: Camping, Traveling, RV, Emergency, etc.
  • Compact size;
  • Easy to operate;
  • Convenient to carry;
  • High energy density
  • Space saving ( Laid flat or hung on the wall, not upright.)

Available to registered users after login/registration is enabled.

Product Properties

PropertyValueUnit
Solar Charge Till Full TimeEstimated time 3.6h
AC Charge Till Full TimeEstimated time 2h
Energy Capacity2000Wh
Maximum Output Power1000W
Input Max. PV Power550W
Input MPPT Range11~55V/ 550W Max.V
Rated Input Voltage230V
Input Voltage Range90~280Vac+5VacV
Input Power Factor>0.95Description
Rated Output Voltage230Vac ± 5VacV
Output Power Factor≥0.99Description
Maximum Charging Power1000W
Overload capacityCP 500W Latch output @ <170VacDescription
Charging PortPV MC4/AC(Pin type)Description

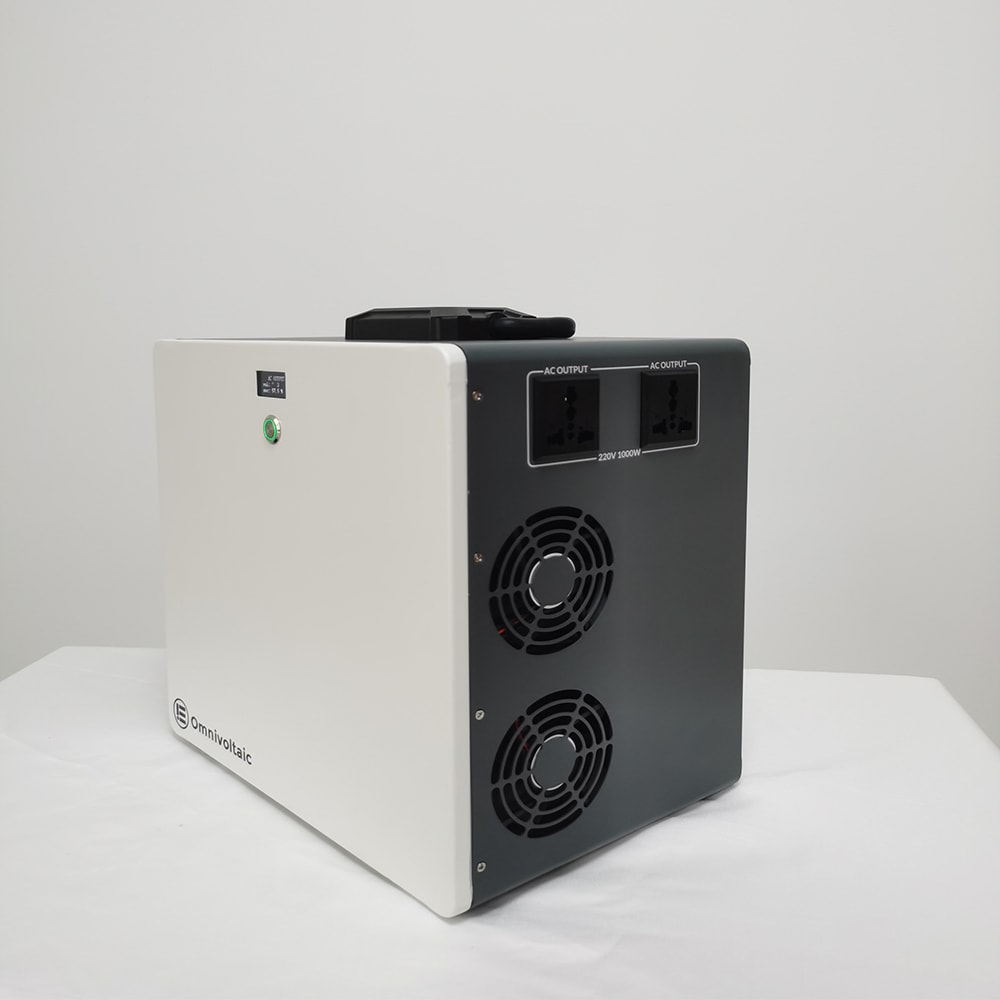

DisCharging PortUniversal AC socket x 2PCS and USB Phone Charging 5v5W x1PCSDescription

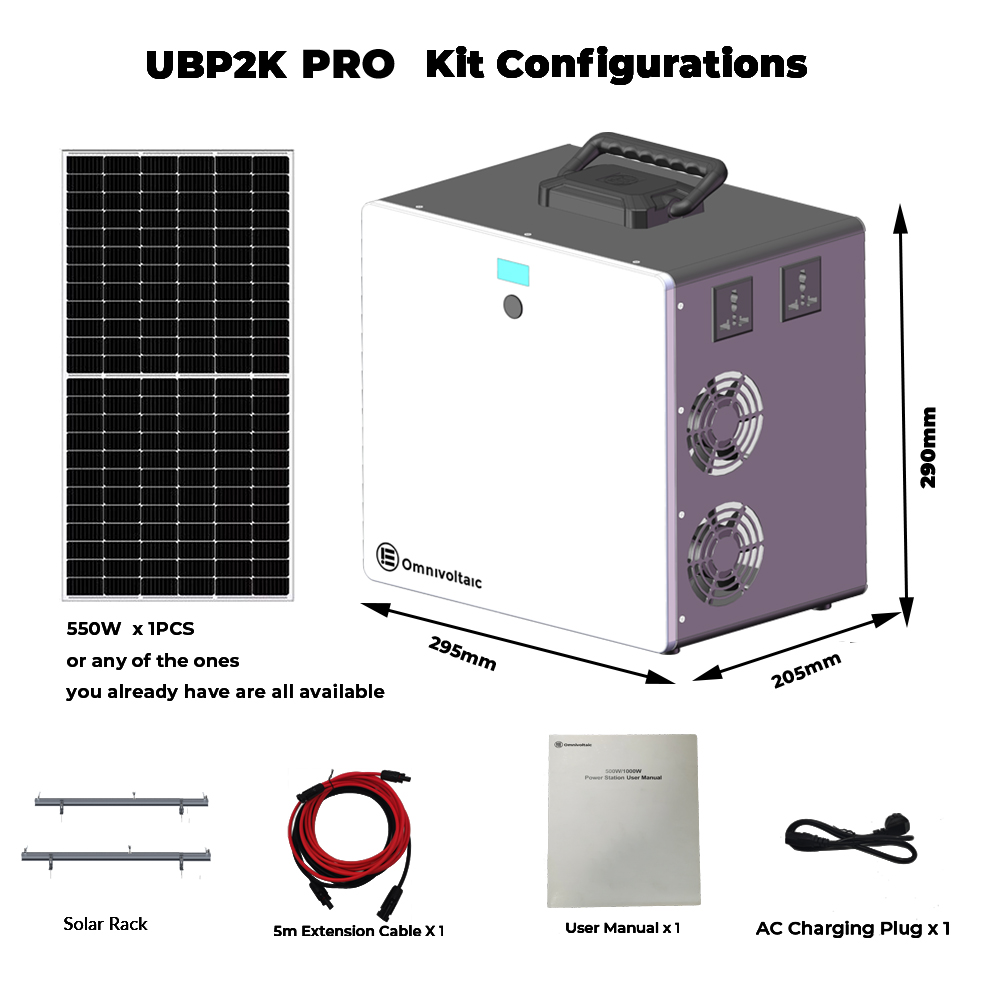

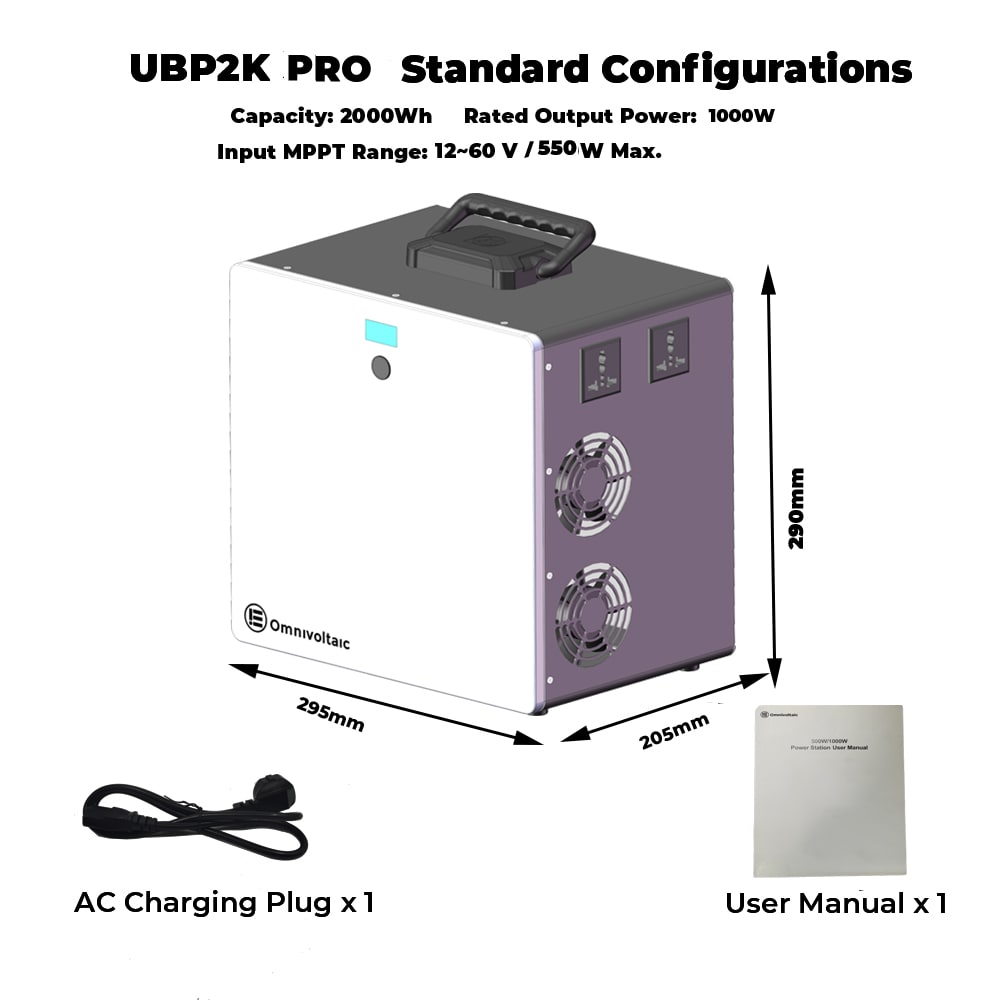

Product Standard Configuration1xUBP2K Pro, 1xAC Charging Cable,1xUse Manual, Wall Mount-
Package Dimension540*375*225MM
Package Weight22kg

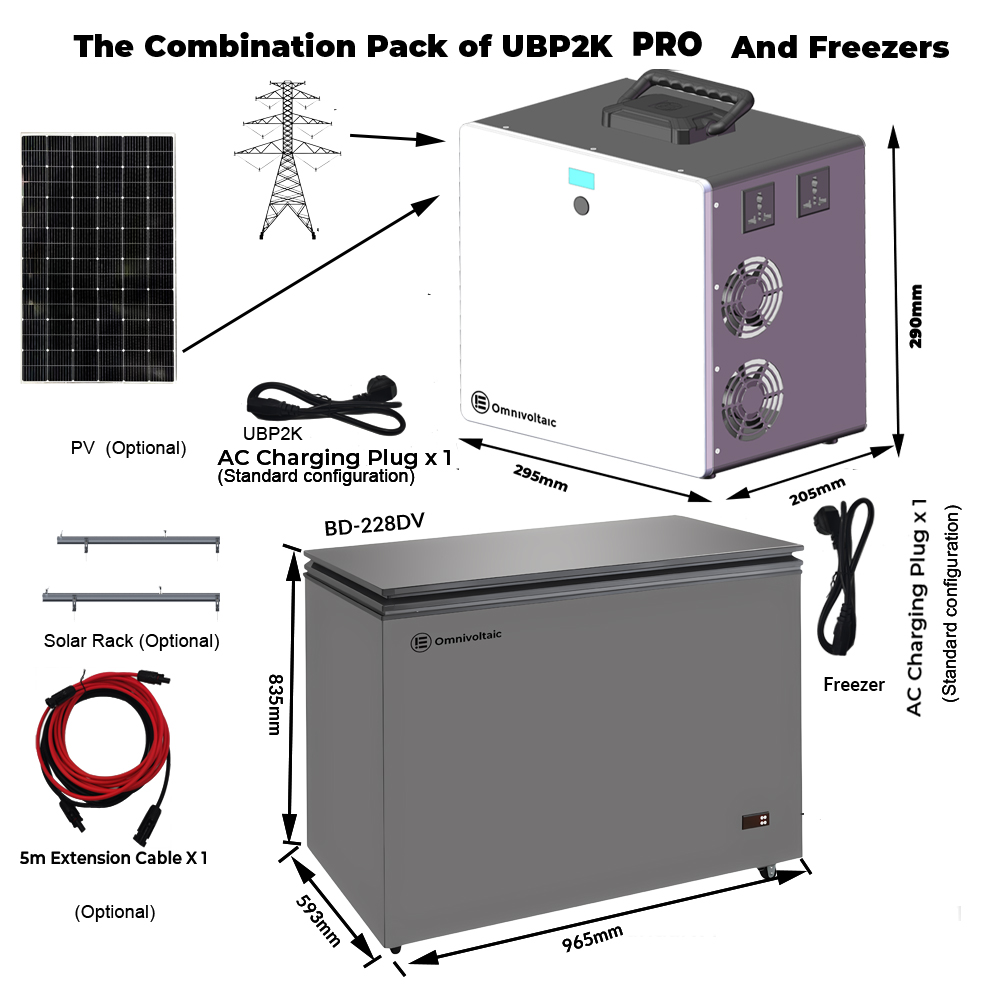

Solar PanelOptions (Foldable Solar Panel or Crystalline Silicon Solar Panel)-

Items Included
